RI10 IP-TO-SYNC Controller – 120 kbps

RI10- DCE / IP-TO-SYNC CONTROLLER | synchronous serial data over Ethernet (TCP/IP)

The RI10 IP-to-Sync Controllers are a pair of 19-inch rack-mountable devices designed to transfer synchronous serial data over Ethernet (TCP/IP). These controllers enable the secure transfer of encrypted bulk data over IP across extended distances, leveraging existing high-performance COMSEC devices. Additionally, the RI10 functions as a split-site controller, providing comprehensive configuration, control, and status capabilities.

The RI10 efficiently breaks continuous serial data streams into fixed-size packets, adds IP framing, and transmits the data over a packet-switched Ethernet network, such as Defence LAN/WAN, to remote transmission or reception sites. In reverse, the received IP data is de-encapsulated and synchronously clocked into data encryption equipment, like NATO KIV-7M and KG-84 encryptors.

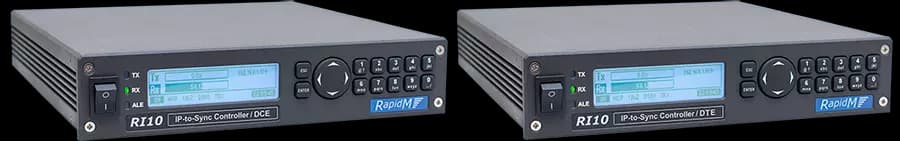

The RI10 comes in two variants: the DCE variant, positioned between the COMSEC device and the Wide Area Network (WAN), and the DTE variant, which operates as a Data Terminal Equipment device on the radio equipment side. Notably, when using the RM10 HF Wideband Modem, the RI10 DTE variant is unnecessary due to the RM10's embedded DATA LAN/WAN port.

Ideal for installation on naval and maritime platforms, as well as NATO shore stations requiring split-site operations (e.g., BRASS/BRE1TA and BRIPES), the RI10 is part of the RapidM Family 10 Suite. This suite includes the RM10, RC10, RB10, and RS10 products, all sharing a common hardware platform, ensuring a long (20-year) product and spare availability period.


Features, Benefits and Specifications

  • DCE and DTE Variants Available
  • Converts EIA-530 Serial-to-IP
  • Unit Time Updates via External GPS or NTP Time Server
  • External Interfaces:
    • DTE (From Crypto/ARQ) Port – EIA 530A Synchronous/Asynchronous, RS-232/RS-422
    • Ethernet CTRL LAN Interface – Management and Control
    • Ethernet DATA LAN Interface – Raw Data TCP/IP
    • Ethernet AUX (DATA) LAN Interface – Raw Data TCP/IP
    • Remote Control (Serial) and GPS (NMEA and 1 PPS)
    • Asynchronous Serial Port – for ACP-126/127
  • Deployment – Naval and Maritime Platforms (Surface, Sub-Surface and Air) and Shore Station/Split-Site
  • Time Updates via External GPS or NTP Time Server
  • Companion Products – RI10 DCE Variant, RC10 and RM10
  • Supported Data Rates:
    • Sync: 50 bps to 128 kbps (Half-Duplex)
    • Sync: 50 bps to 64 kbps (Full-Duplex)
    • Async: 50 bps to 480.8 kbps (Half/Full-Duplex)
  • Menu-Driven Control and Configuration
  • Factory Presets – Lower Integration Effort
  • Excellent Environmental Specifications:
    • Based on RapidM “Family 10” Common Hardware Platform
    • Low Power Consumption
    • High-Temperature Range
    • Tested for High Shock and Vibration
    • High MTBF
    • 20 Year Product and Spares Availability Period
