RM6-A Data Modem & ALE Controller | RM6-A HF Radio Modem

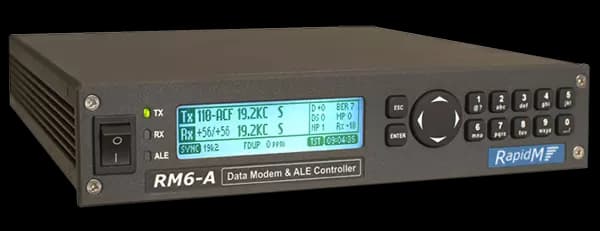

The RM6-A Data Modem and ALE Controller is a high-data-rate LF and HF data modem and ALE controller designed for standards-based BLOS data communications in numerous maritime and NATO naval systems. Building on the success of its predecessor, the RM6, the RM6-A incorporates the latest generation hardware and software, matching the form, fit and interface layout of the RM6.

The RM6-A is ideal for long-distance point-to-point data communications, supporting ranges up to 10,000 kilometres via HF radio. It offers a maximum data rate of 9600 bps over a standard 3 kHz (SSB) HF radio channel and 19200 bps over an ISB channel.

The RM6-A features a built-in 2G ALE controller option and supports MIL-STD-188-110A/B, STANAG 4539 and related modems, as well as MIL-STD-188-141, App A (2G ALE) and App B (Linking Protection). It also supports the RAP1/RIPC and STANAG 5066 Annex E (ASCII) control protocols and is designed to operate in conjunction with an external STANAG 5066 ARQ server.

Recommended as an alternative to the RM6 in new installations, the RM6-A can either be installed into a 19-inch rack system or used as a desktop unit, with the front panel providing full local control of all settings and functions.

The functionality of the RM6-A is determined by the selection of one of the following software packs:

  • M1: LF and HF Modem (SSB, ISB, Up to 19200 bps)
  • M2: HF Modem (SSB, Up to 9600 bps)

The following software option is further available for both M1 and M2 software packs:

  • 2G ALE Controller Software Option

Features, Benefits and Specifications

RM6-A Modem Platform

  • Up to 9600 bps in 3kHz
  • Up to 19200 bps (ISB Radio)
  • STANAG 5066 Interoperable
  • Broadcast and Ship-Shore (BRASS) Compatible
  • MIL-STD-188-114 Compatible Interface
  • Supports Split-Site Operation
  • AC Supply: 100 – 240 VAC, 50/60/400 Hz
  • -30°C to +60°C Operating
  • Size: ½ of 1U 19-Inch Rack
  • Two Units Will Fit Side-by-Side in a 1 U Slot

LF and HF Software Packs (M1, M2)

Standard
Software Pack
M1M2
MIL-STD-188-110B Appendix C (QAM)
STANAG 4539 (QAM)
MIL-STD-188-110B (QAM)
MIL-STD-188-110B Appendix F (QAM)
MIL-STD-188-110A 5.3 (8-PSK)
STANAG 4415 (WALSH)(NATO Robust)
STANAG 4285 (8-PSK)
STANAG 4529 (NB 8-PSK)
STANAG 4481 (P/FSK)
STANAG 5065 (MSK)(LF)
FSK Variable

2G ALE Controller Software Option

  • MIL-STD-188-141B App. A
  • FED-STD 1045
  • Occupancy Detection
  • MIL-STD-188-141B App. B
  • FED-STD 1049 Linking Protection
