Embedded Modules

Our embedded modem modules provide radio makers with next-generation digital capabilities that enhance both new or existing radio designs with minimal integration effort and low overall development cost.
TC5 Wideband HF & V/UHF Modem, ALE and SDV Module – 4G, 24 kHz

The TC5 is an embedded data modem and ALE controller for integration into HF/VHF/UHF radios, enabling high-speed BLOS and HF surface wave communications. It supports wideband HF modem functions (MIL-STD-188-110C App. D, up to 24 kHz) and is future-ready for 4G ALE (MIL-STD-188-141D). The TC5 also hosts a VHF circuit modem with data rates up to 256,000 bps and includes RapidM’s EF-256 embedded functions, such as secure digital voice (SDV) and AES-256 encryption, ensuring secure, high-performance communications.


TC2 HF & V/UHF Modem, ALE and SDV Module – 3G, 3, 6 kHz

The TC2 is an embedded modem module for integration into LF, HF and V/UHF radios, offering data modems and 2G/3G ALE (STANAG 4538). It hosts RapidM’s EF-256 functions, including secure digital voice (SDV) and AES-256 encryption for secure communications. Ideal for upgrading TC4-based designs, the TC2 offers lower power consumption, digital voice capabilities, and V/UHF data rates up to 128,000 bps in a 24 kHz channel.


TC4-LP HF & V/UHF Modem, ALE and Voice Module – 3G, 3, 6 kHz

The TC4-LP is a high-performance LF, HF and V/UHF modem, ALE and voice module. The TC4-LP is optimised for low power consumption. The module is suitable for integration into LF, HF and V/UHF radios and other communication equipment. The TC4-LP is recommended for new designs.


Software

RapidM offers a range of PC software applications that support our TC embeddable modules by providing higher-level communication services. Services include email, chat messaging, file transfer, positioning, as well as gateway services to IP and GSM.
MessagePoint Messaging Software

The MessagePoint application allows individual users to use their existing standard email clients to connect to the radio network. MessagePoint supports MS Outlook, Lotus Notes and others.


GatePoint Email & SMS Gateway Software

The GatePoint application allows radio networks to be connected to fixed infrastructure such as intranet email and GSM SMS networks.


EntryPoint Communication Stack API Software

EntryPoint Communication Stack API Software, combined with RapidM modems and terminals, offers third-party applications the ability to send and receive data easily, efficiently and reliably over HF and V/UHF radio links.

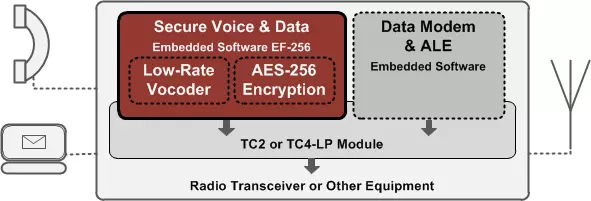

EF-256 Embedded Functions for Secure Voice & Data

The Secure Voice & Data Embedded Functions EF-256 are intended for integration into radio transceivers and other communication devices.


Evaluation and Test

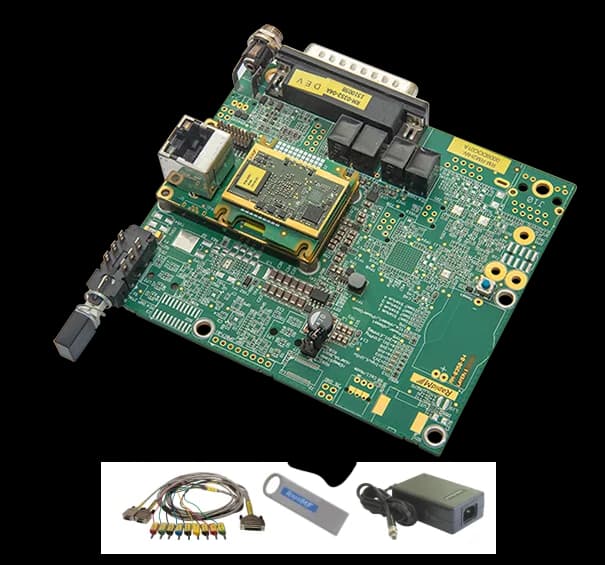

TC-Eval TC2, TC4 and TC5 Evaluation Kit

The TC-Eval is an evaluation kit for the RapidM TC2, TC4 and TC5 Modules. The TC-Eval allows equipment manufacturers to evaluate the module functions including LF / HF / VHF / UHF data modem and ALE controller capabilities.
